Custom Carbon Fiber Square Tubes
Made-to-drawing carbon fiber square tubes for lightweight frames, robotics, automation equipment and structural OEM assemblies. Specify the dimensions, wall thickness, laminate, finish and secondary machining required for your project.
Custom Dimensions · 3K Fabric / UD Layup · CNC Machining · OEM Production
| Profile | Square / Rectangular / Custom CFRP Profile |
| Material | T300 / T700 Carbon Fiber |
| Dimensions | Made to Drawing |
| Processing | Cutting / Drilling / CNC / Bonding |
Drawing-based review · Prototype and repeat production support
Made to Drawing
Custom dimensions and interfaces
Engineered Layup
Woven fabric, UD or hybrid structure
Secondary Processing
Cutting, holes, slots and bonding
OEM Support
Prototype through repeat supply

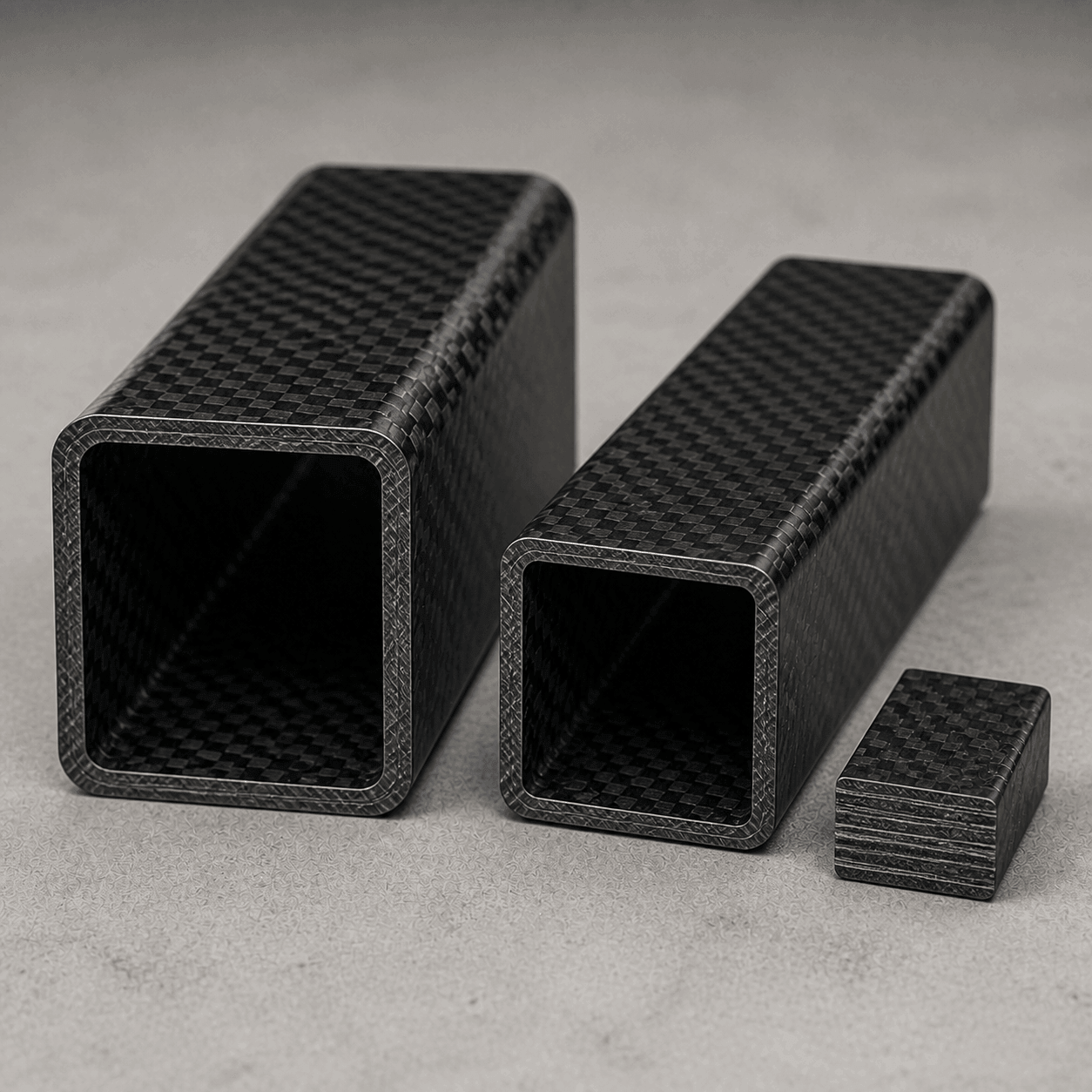

Square Carbon Fiber Tubing for Lightweight OEM Structures
A carbon fiber square tube combines flat mounting faces with the lightweight potential of an engineered CFRP laminate. Unlike an off-the-shelf metal profile, a custom CFRP square profile can be reviewed around load direction, stiffness, joining method and the geometry of the finished assembly.
CarboSources supplies square carbon fiber tubing made to drawing, with project-specific wall thickness, fiber structure, resin system, surface finish and machining. For continuous profiles dominated by axial loads, a pultruded carbon fiber square tube may also be evaluated.
Carbon Fiber Square Tube Specifications
Final dimensions, tolerances and laminate details are confirmed during engineering review.
| Specification | Custom Options | Information Needed |
|---|---|---|
| Cross-Section | Square, rectangular or custom CFRP profile | External and internal geometry |
| Dimensions | Custom width, height and internal size | Dimensioned drawing |
| Wall Thickness | Project-specific laminate and thickness | Loads and stiffness target |
| Carbon Structure | 3K fabric, UD or engineered layup | Load direction and environment |
| Resin System | Epoxy or application-specific system | Temperature and chemical exposure |
| Surface Finish | Matte, glossy, semi-gloss or textured | Appearance and bonding needs |
| Secondary Processing | Cutting, holes, slots, chamfers and bonding | STEP, IGES or dimensioned PDF |
| Inspection | Dimensional and visual checks | Critical dimensions and criteria |
Information Required for a Quote
Send the following details for a carbon fiber square tube feasibility review:
- External and internal dimensions
- Wall thickness and tube length
- Load direction and application
- Quantity and delivery schedule
- Finish, tolerance and machining
- CAD or dimensioned drawing
Custom Carbon Fiber Square Tubing Options
Configure the square CFRP tube around the geometry, mechanical requirements and integration details of the final assembly.
Custom Sizes
Width, height, internal geometry, wall thickness and length made to drawing.
Engineered Layup
3K woven fabric, UD reinforcement or a project-specific carbon architecture.
Surface Finish
Matte, glossy, semi-gloss or project-specific appearance and bonding surfaces.
CNC Processing
Cutting, drilling, slots, chamfers, end features and selected interface details.

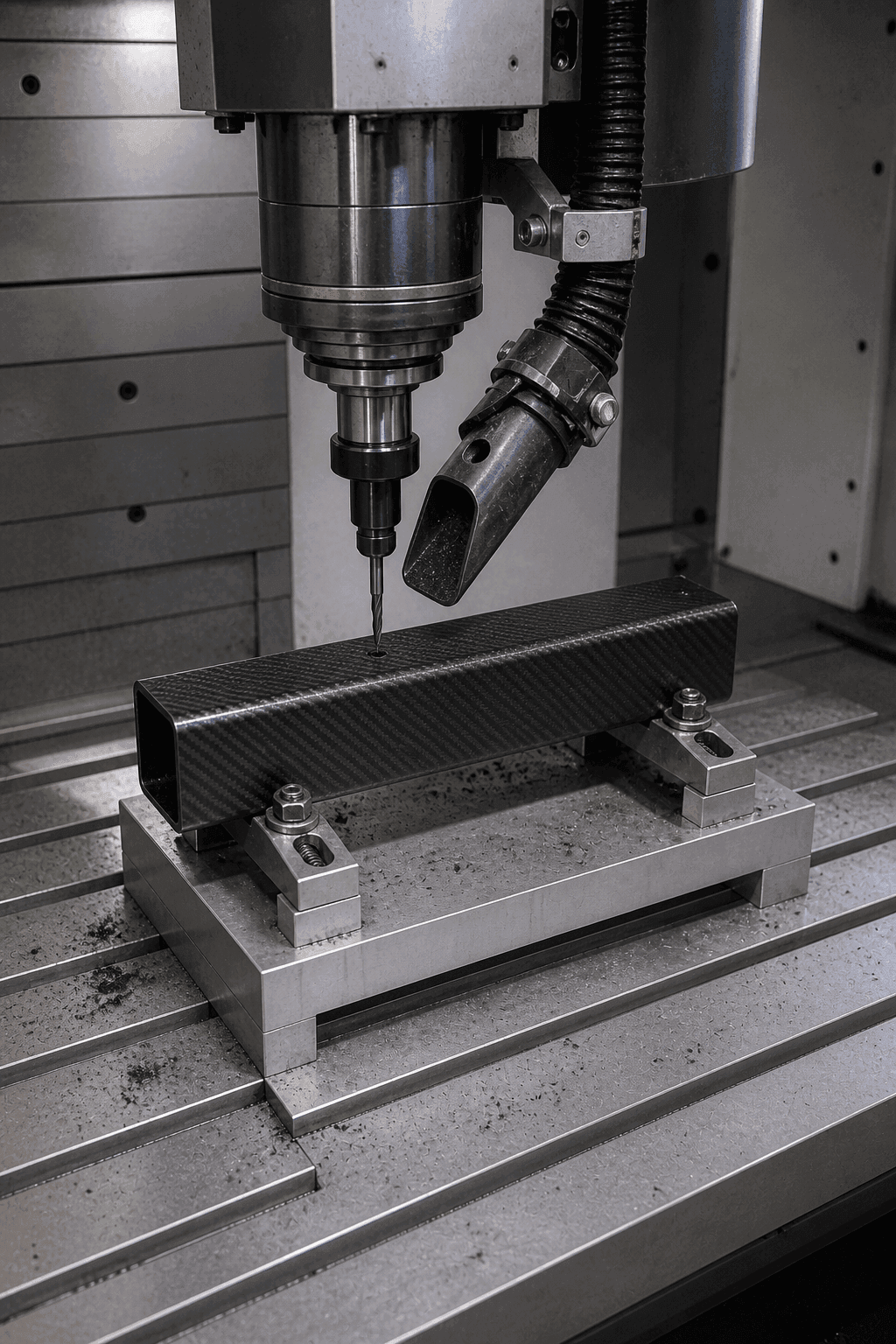

Carbon Fiber Square Tube Manufacturing & CNC Machining
Manufacturing method, tooling, fiber structure and resin system are selected after reviewing the profile geometry, structural loads, tolerance and planned quantity.
01 · Drawing Review
Confirm profile geometry, interfaces, loads, tolerance and target quantity.
02 · Material & Layup
Select fiber grade, woven or UD reinforcement and resin system.
03 · Tooling & Prototype
Review tooling route and produce samples when required.
04 · Secondary Processing
Complete cutting, drilling, machining and bonding preparation.
05 · Inspection
Check critical dimensions, finish and agreed acceptance criteria.
06 · OEM Supply
Protective packaging and repeat production based on approved requirements.
Benefits of Carbon Fiber Square Tubes
Performance depends on geometry, laminate, load direction and connection details. Confirm the design against the application.
High Stiffness-to-Weight Potential
Engineered carbon reinforcement supports lightweight structures where stiffness and mass are important.
Flat Mounting Faces
Square faces simplify alignment, bracket positioning and anti-rotation interfaces.
Application-Specific Layup
Fiber architecture can be reviewed around axial, bending, hoop and torsional demands.
Machining and Bonding Options
Tube features and bonding surfaces can be prepared for assembly after drawing review.
Corrosion-Resistant Composite
Carbon composite does not rust, while resin selection should match the service environment.
Prototype to Repeat Supply
A defined drawing and inspection plan supports controlled samples and production batches.
Carbon Fiber Square Tube Applications
Custom square CFRP profiles support lightweight and dimensionally controlled structures across demanding OEM applications.
Robotics & Automation
Lightweight arms, frames, supports and indexed machine structures.
UAV & Aerospace Equipment
Low-mass structural members and ground-support assemblies.
Camera & Optical Systems
Rigid rails, positioning structures and vibration-sensitive equipment.
Medical Equipment
Lightweight frames and instrument-support components.
Industrial Machinery
Corrosion-resistant beams, guides and assembly structures.
Telescoping Structures
Nested or adjustable mechanisms subject to dimensional review.
Carbon Fiber Square Tube vs. Aluminum
Material selection should consider stiffness, mass, joining method, operating environment, cost and production requirements. This comparison is a design-review starting point rather than a universal performance claim.
| Design Factor | Carbon Fiber Square Tube | Aluminum Square Tube |
|---|---|---|
| Density | Lower material density | Higher than CFRP |
| Stiffness Direction | Tailored by laminate | More isotropic |
| Corrosion | Does not rust; resin matters | May require finish protection |
| Joining | Bonding, inserts and mechanical features | Welding and mechanical joining |
| Machining | Composite tooling and dust control | Conventional metal machining |

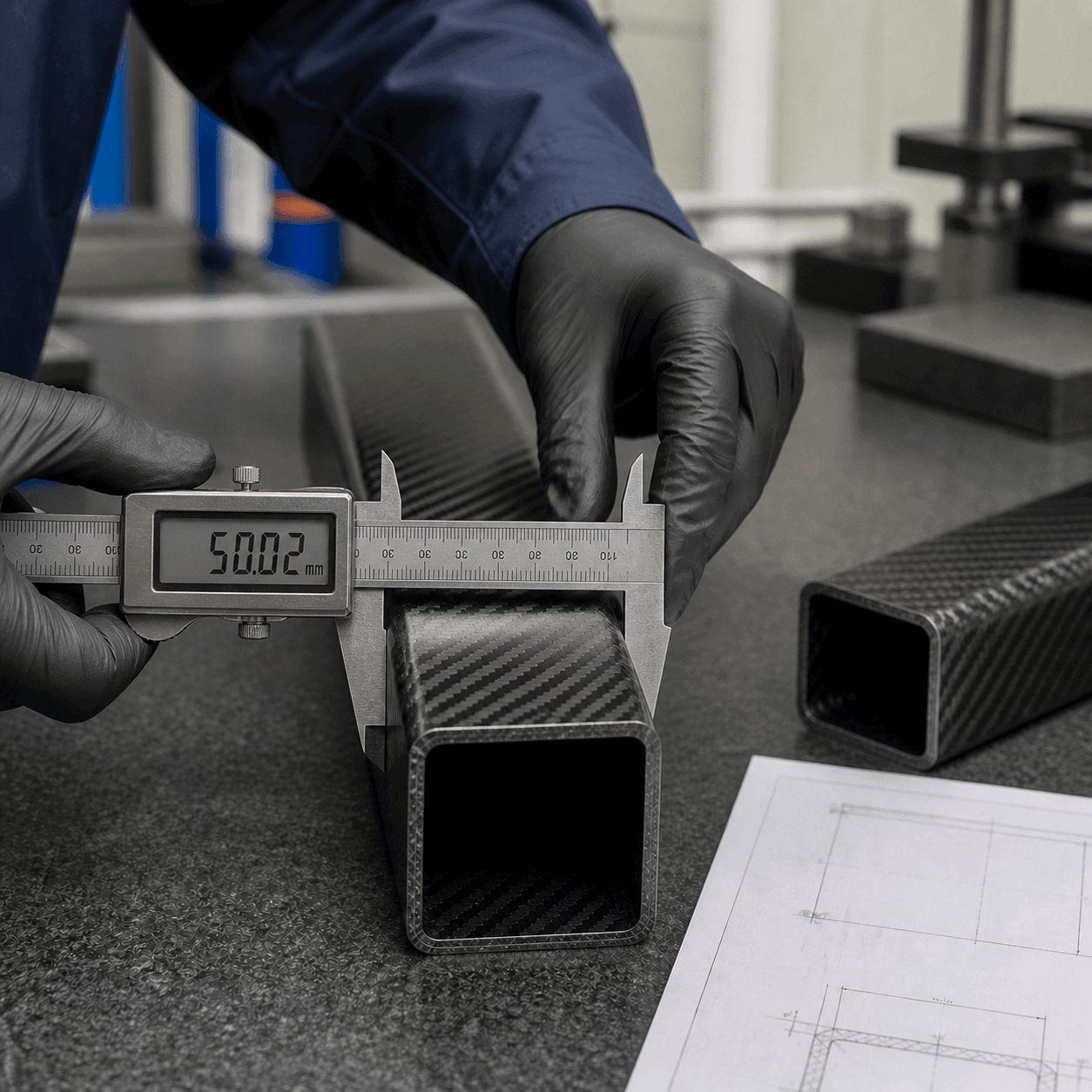

Inspection for Custom CFRP Square Profiles
Drawing and Critical Dimensions
Confirm measurable dimensions, datum references and acceptance criteria.
Surface and Processing Review
Inspect finish, edges, holes and machined features as agreed.
Packaging and Traceability
Define labeling and protective packaging for OEM supply.
Carbon Fiber Square Tube FAQ
Technical and purchasing questions for custom square carbon fiber tubing projects.
A carbon fiber square tube is a hollow CFRP structural profile with four flat external faces. It is used where low weight, engineered stiffness, alignment surfaces and integration into frames or mechanisms are important.
External dimensions, internal geometry, wall thickness and length can be reviewed against a project drawing. Availability depends on tooling, laminate, manufacturing method, tolerance and target quantity.
Yes. Woven carbon fabric, unidirectional reinforcement or an engineered layup can be evaluated around the required load directions. Final wall structure is confirmed during engineering review.
A pultruded carbon fiber square tube may be appropriate for continuous profiles with primarily longitudinal reinforcement. Other methods can be reviewed when multi-directional loads or project-specific surfaces are important.
Yes. Cutting, holes, slots, chamfers, countersinks and selected end features can be completed after drawing review using composite-compatible tooling, fixturing and dust control.
Connections may use structural adhesive, bonded inserts, brackets or reviewed mechanical features. Joint geometry, surface preparation, peel loads, bearing loads and galvanic isolation should be considered.
Provide dimensions, wall thickness, length, quantity, application, design loads, tolerance, finish, machining details and delivery destination. STEP, IGES and dimensioned PDF drawings support a faster review.
MOQ and lead time depend on tooling status, profile geometry, laminate, secondary processing, inspection and order quantity. A confirmed schedule is provided after technical review.
