Carbon Fiber Sheets Manufacturer
High-performance carbon fiber sheets and plates manufactured with custom thickness, laminate structure, fiber orientation and precision CNC machining for industrial and OEM applications.
Custom Carbon Fiber Sheet Manufacturing
Carbosources manufactures carbon fiber sheets and plates using carbon fiber reinforcement and high-performance epoxy resin systems. Controlled layup, compression and curing produce lightweight laminates with high stiffness, dimensional stability and consistent surface quality.
Customers can specify thickness, dimensions, weave pattern, fiber orientation, glossy or matte finish, tolerance, CNC cutting, drilled holes and edge preparation. We support prototypes, small batches and repeat OEM production.
High Strength
High specific strength and stiffness
Lightweight
Lower structural mass
Corrosion Resistant
Stable in demanding environments
Custom Sizes
Thickness, dimensions and machining
What Are Carbon Fiber Sheets?

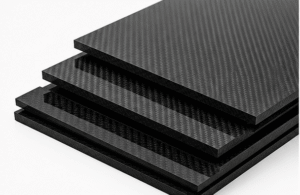

Carbon fiber sheets are flat composite panels produced by layering woven carbon fiber fabric or unidirectional reinforcement with an epoxy resin matrix. The laminate is compressed and cured to form a rigid, durable sheet.
Compared with aluminum and conventional materials, carbon fiber sheets provide high stiffness-to-weight performance, corrosion resistance, low thermal expansion and excellent fatigue life.
- Lightweight structural performance
- High rigidity and dimensional stability
- Multiple weaves, thicknesses and layups
- Suitable for precision CNC machining
As a custom carbon fiber sheet manufacturer and supplier, Carbosources supports prototypes, small-batch orders and repeat OEM production. Sheets can be supplied in custom dimensions, thicknesses, layups and surface finishes, with optional CNC cutting, drilling and edge finishing.
Lightweight Structural Performance
Reduce weight while maintaining strength
High Rigidity
Stable structures and precision panels
Precision Machinability
Accurate holes, contours and features
Choose a Carbon Fiber Sheet for Your Part
Start with the job the sheet must do, then define the laminate, thickness, finish and machining requirements. Appearance alone does not establish structural performance.
Rigid Mounting Plates
Define loads, supported span, thickness, mounting holes and the datum scheme before selecting a laminate or machining route.
Directional Stiffness
Define the load direction, fiber reference axis and laminate requirements for a part whose stiffness is needed in a specific direction.
Sandwich Construction
Define the skin and core requirements, attachment zones and edge closeouts for a lightweight sandwich component.
Curved-Surface Veneers
Define the substrate, bend radius, curve direction and backing requirements. Flexible veneer is reviewed separately from a rigid structural plate.
Specified Visible Surfaces
Provide an appearance reference, weave or chopped-fiber pattern, coating and finish requirements. Appearance does not define the complete laminate.

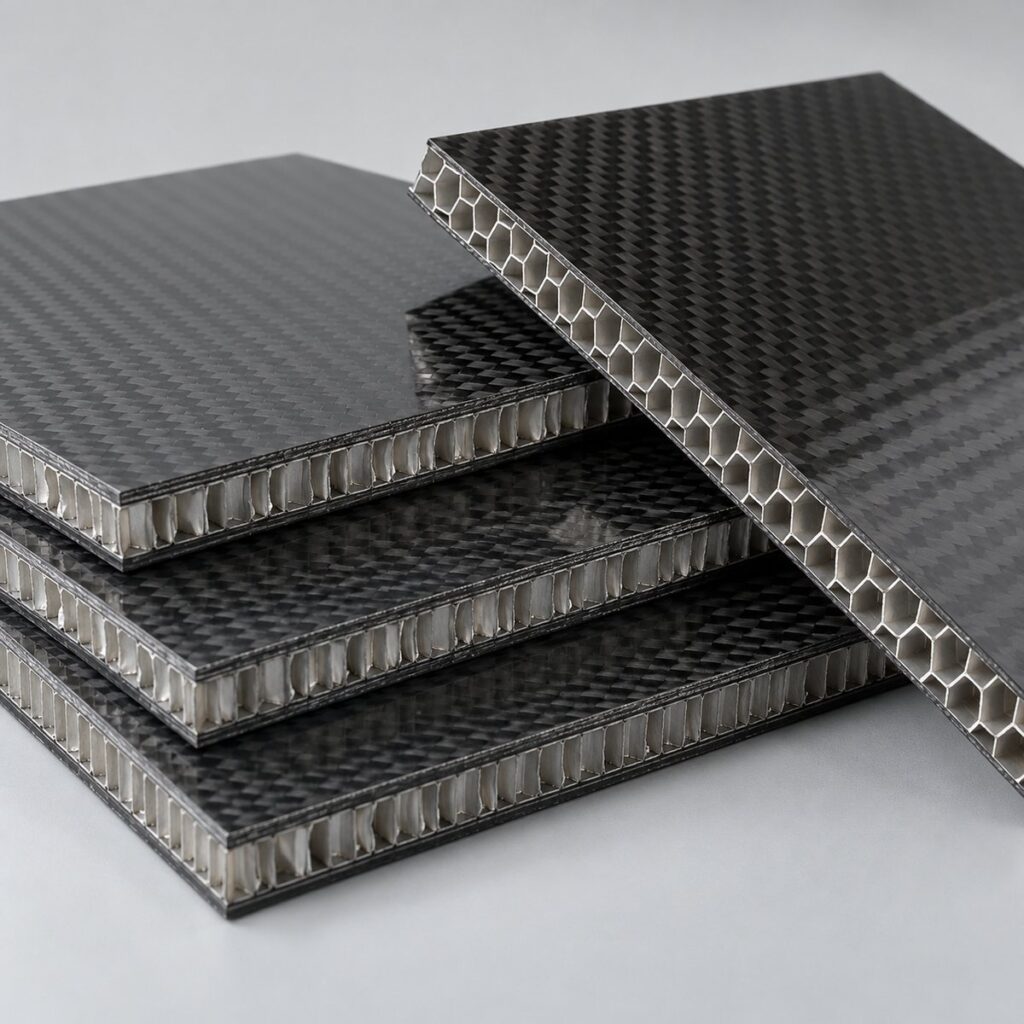

Custom Carbon Fiber Sandwich Panels and Sheets
Custom Forged Carbon Fiber Sheets
Custom Unidirectional Carbon Fiber Sheets

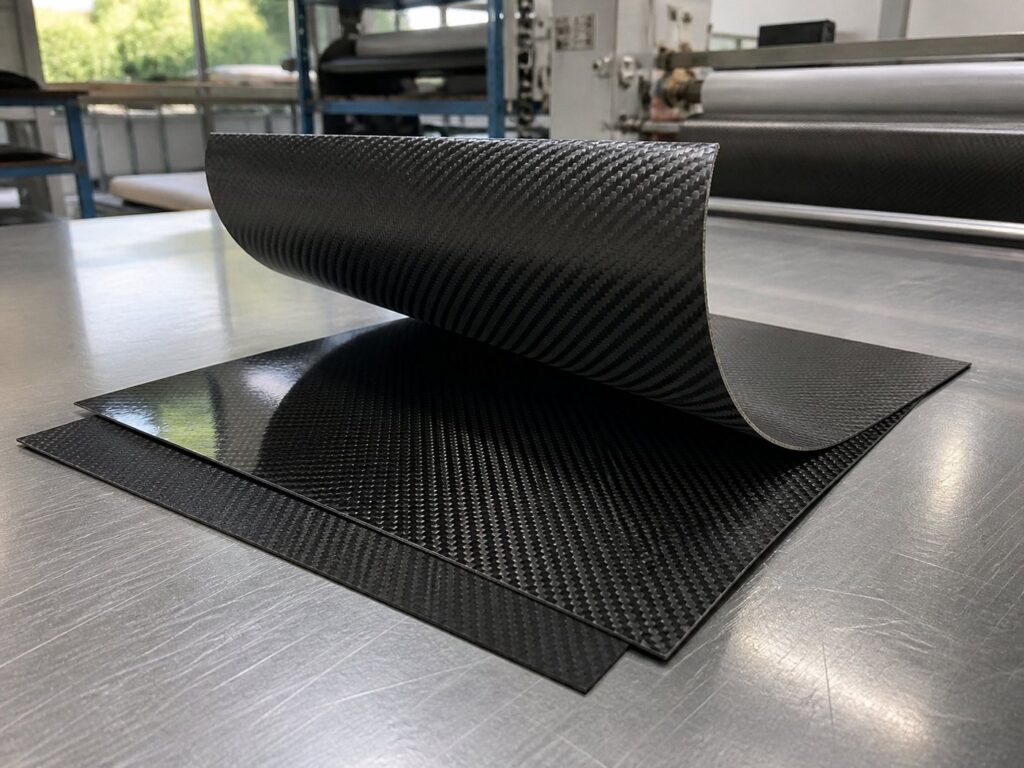

Custom Flexible Carbon Fiber Sheets

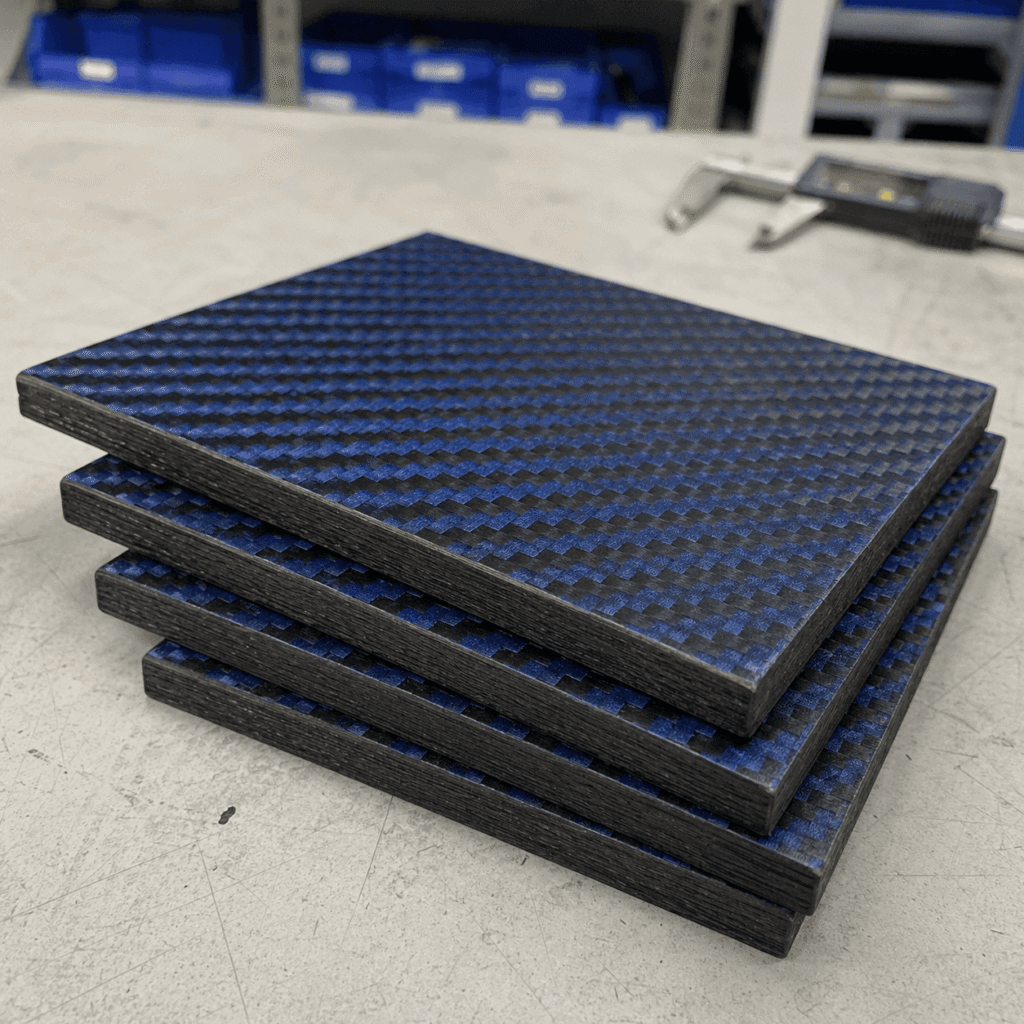

Custom Blue Carbon Fiber Sheets
Sheet Construction and Appearance Options
Weave describes woven reinforcement, such as plain or twill. Laminate construction describes the fiber directions through the thickness, including UD and multi-directional arrangements. Matte and glossy describe surface finish. Specify these separately rather than treating one choice as a complete material specification.

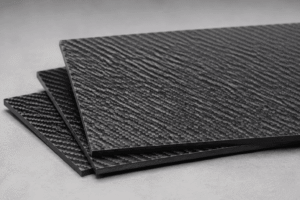

3K Twill Carbon Fiber Sheets
Classic diagonal weave with balanced structural and cosmetic performance.

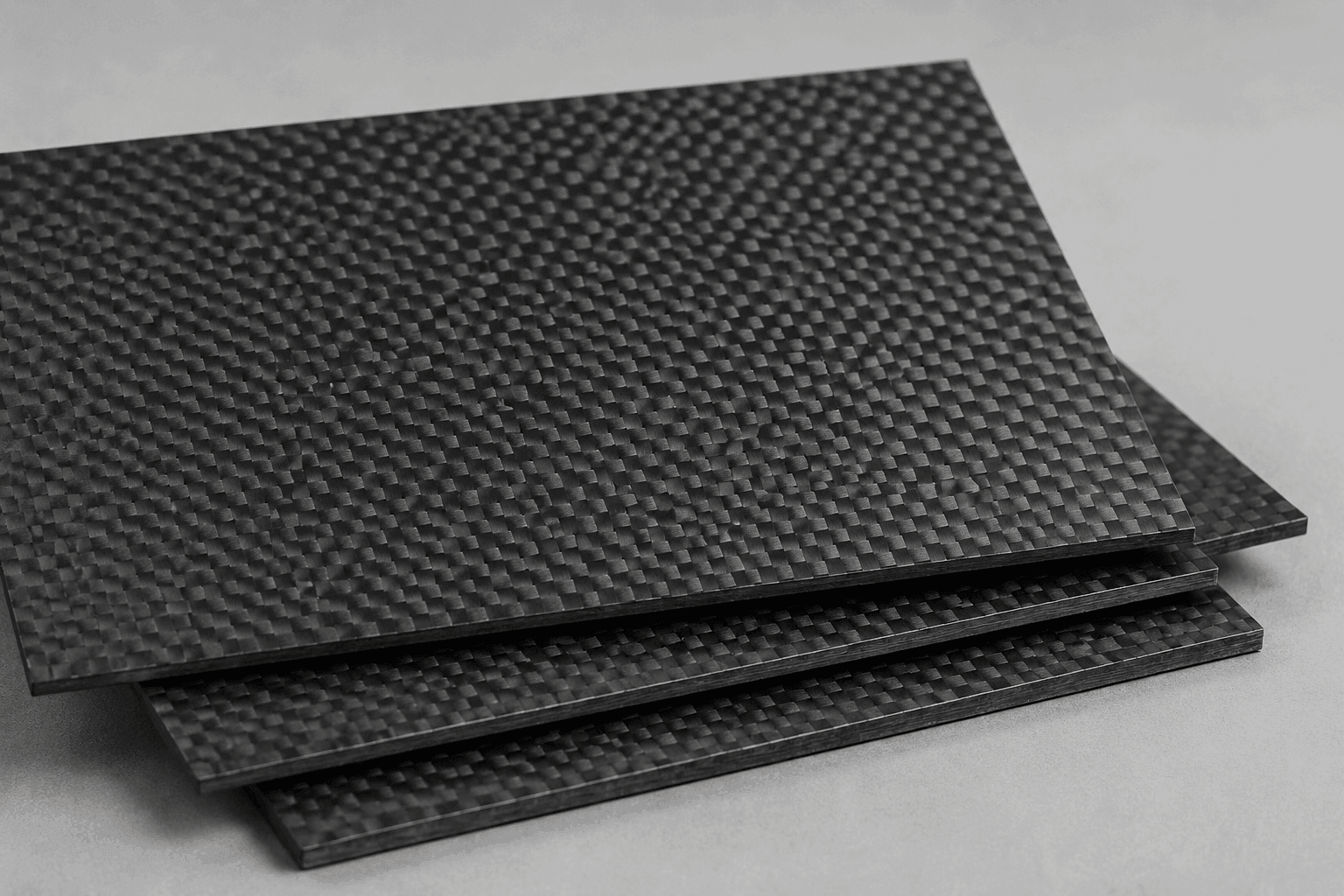

3K Plain Carbon Fiber Sheets
Uniform basket weave for stable appearance and general industrial use.

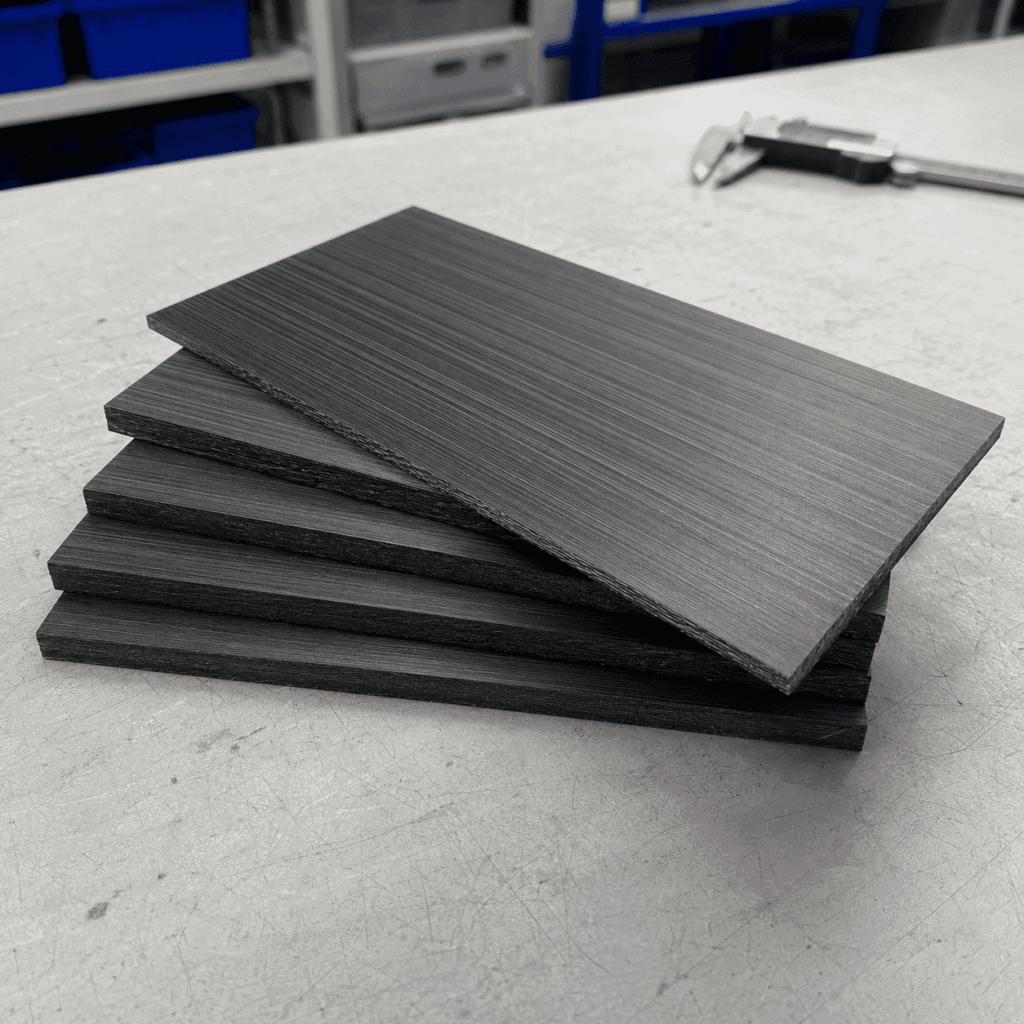

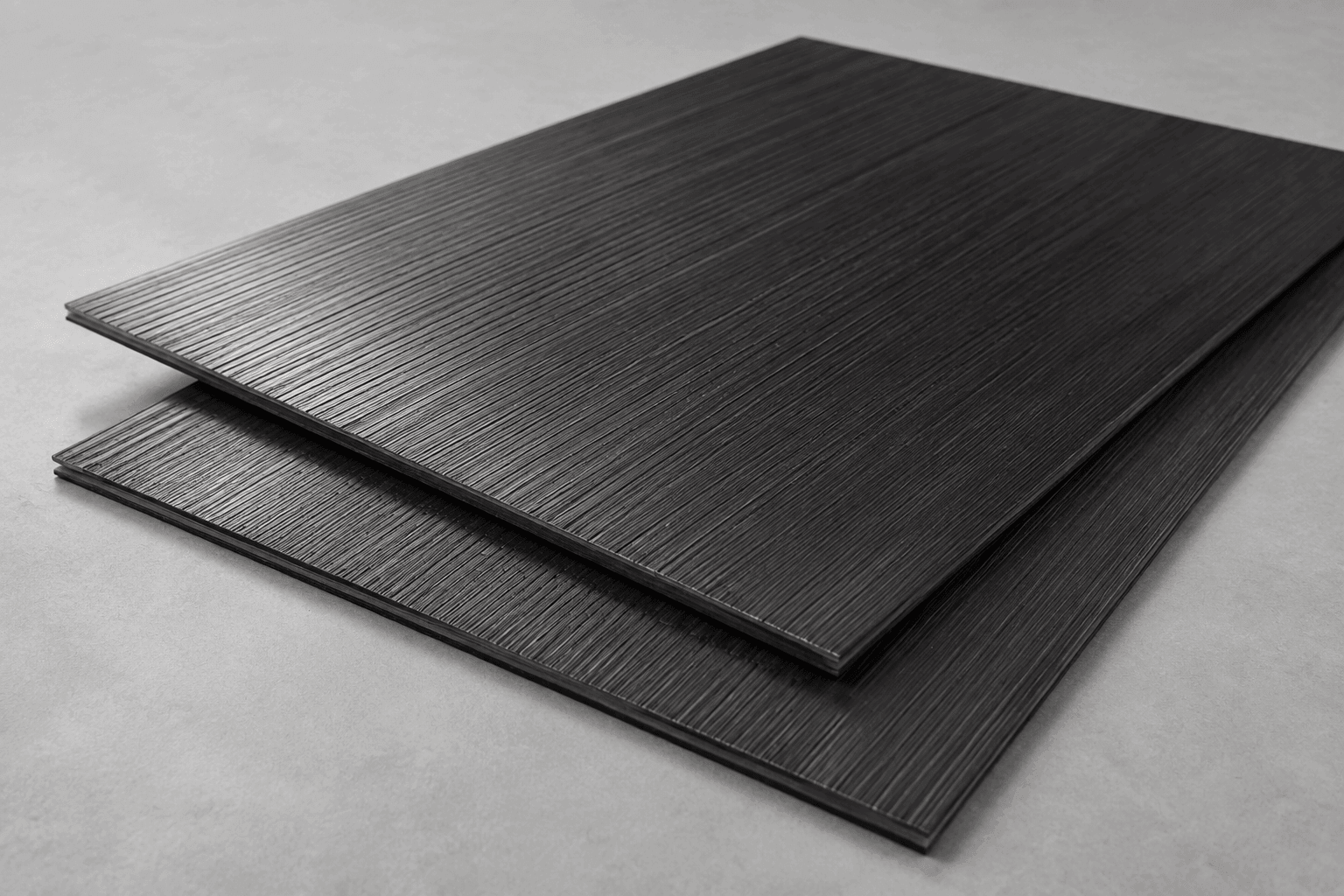

Unidirectional Carbon Fiber Sheets
Fibers aligned in the primary load direction for maximum directional stiffness.

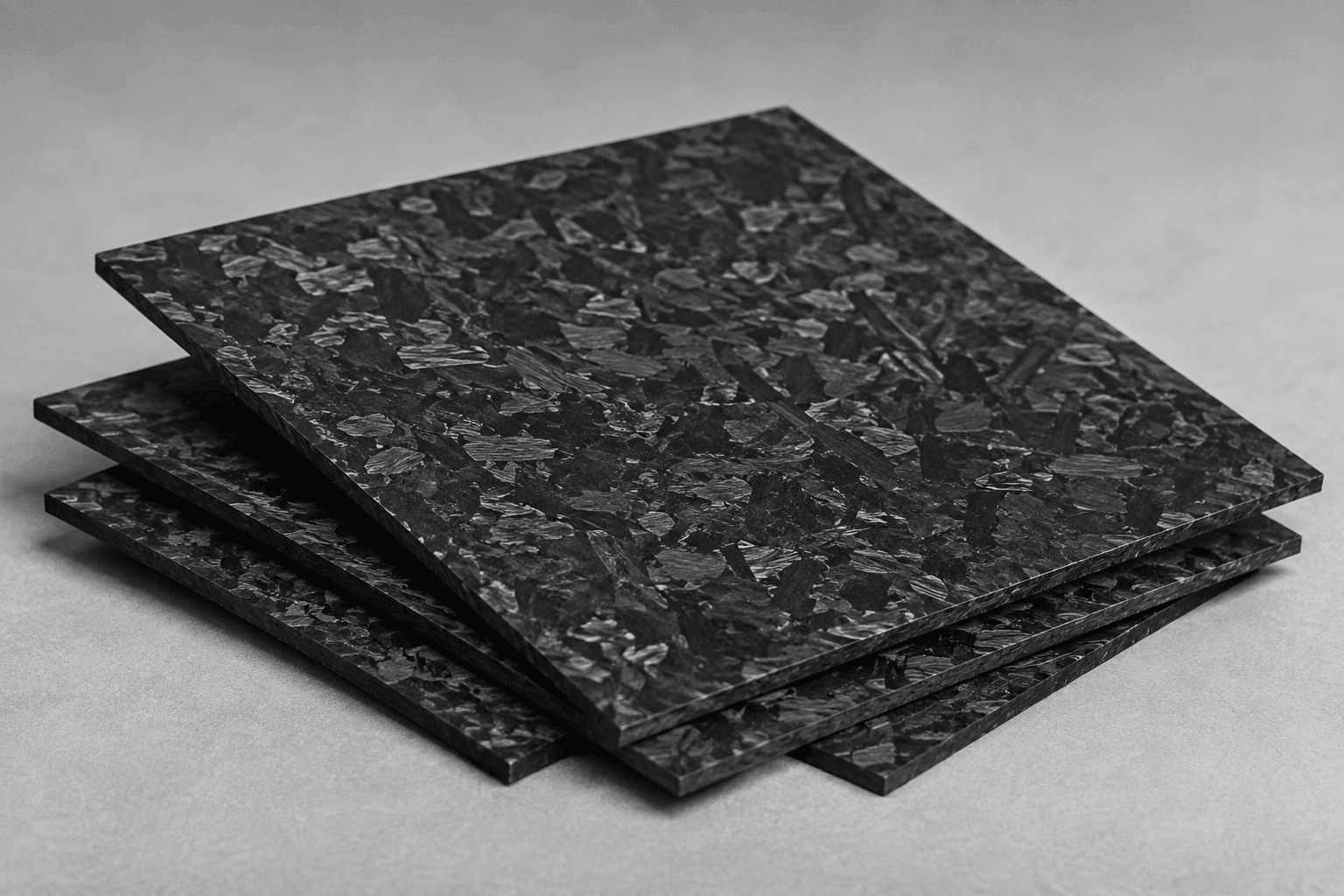

Forged Carbon Fiber Sheets
Random chopped-fiber pattern for unique appearance and complex shapes.

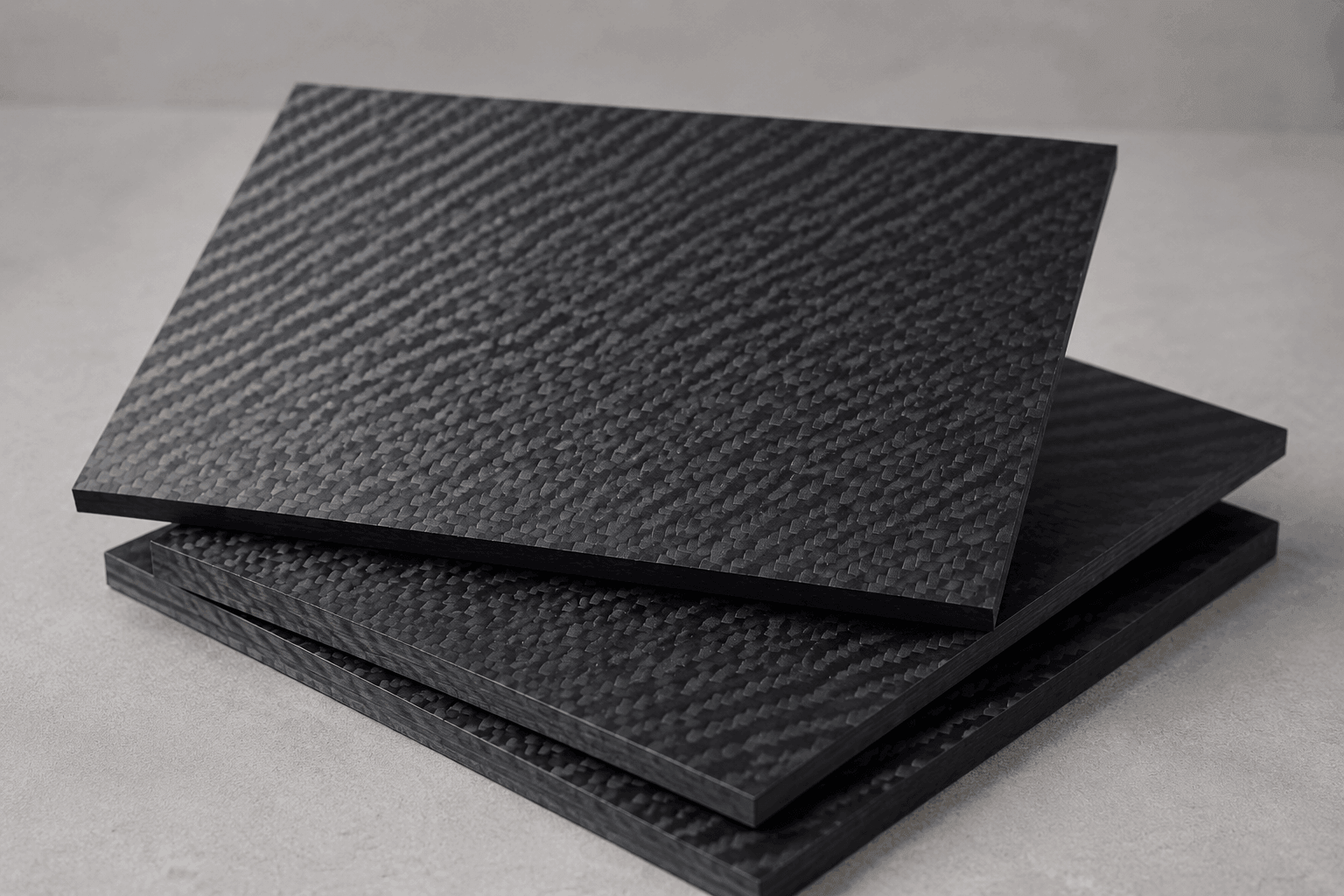

Matte Carbon Fiber Sheets
Low-reflection technical surface for modern industrial products.

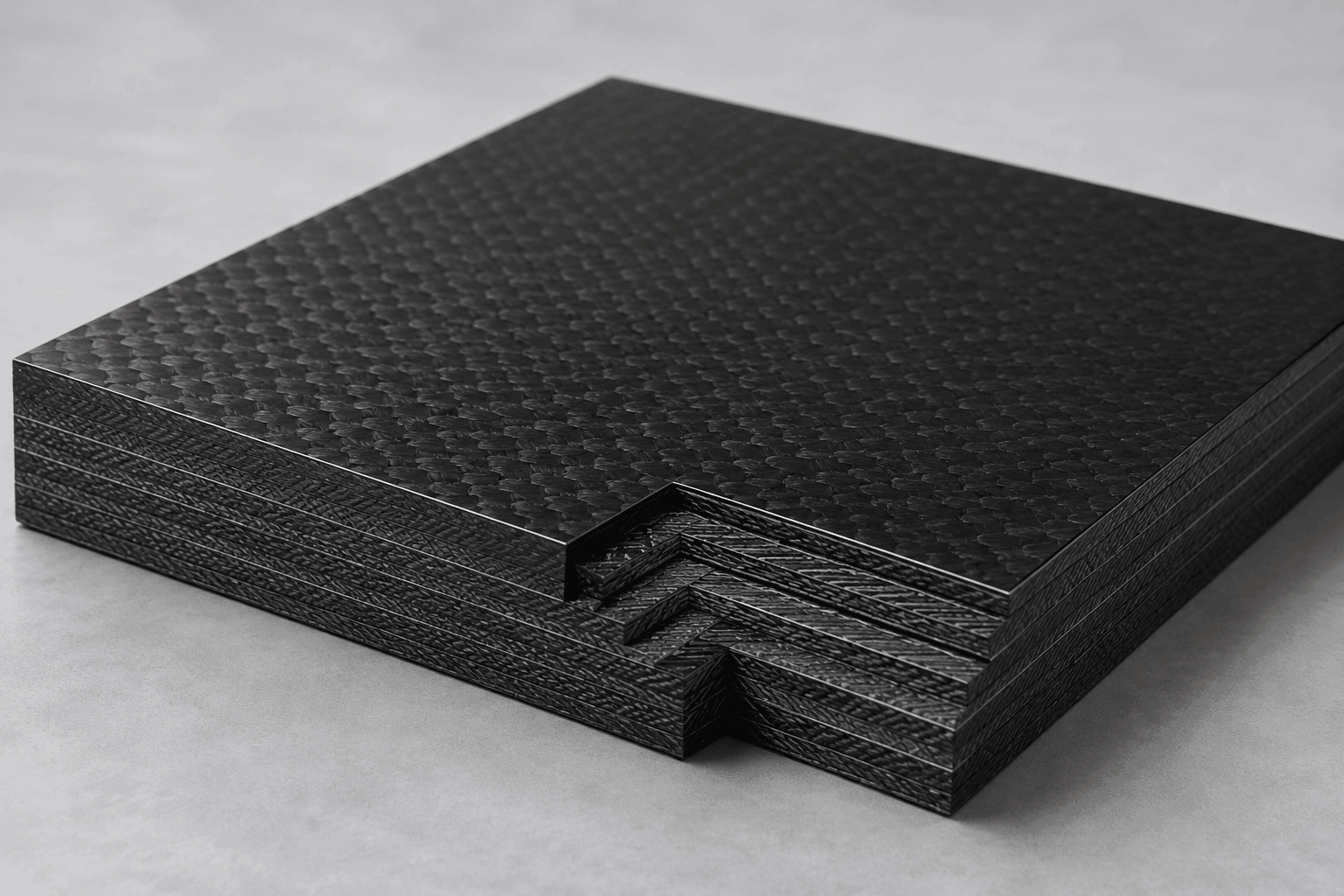

Quasi-Isotropic Carbon Fiber Plates
Multi-directional layup for balanced in-plane stiffness and structural performance.

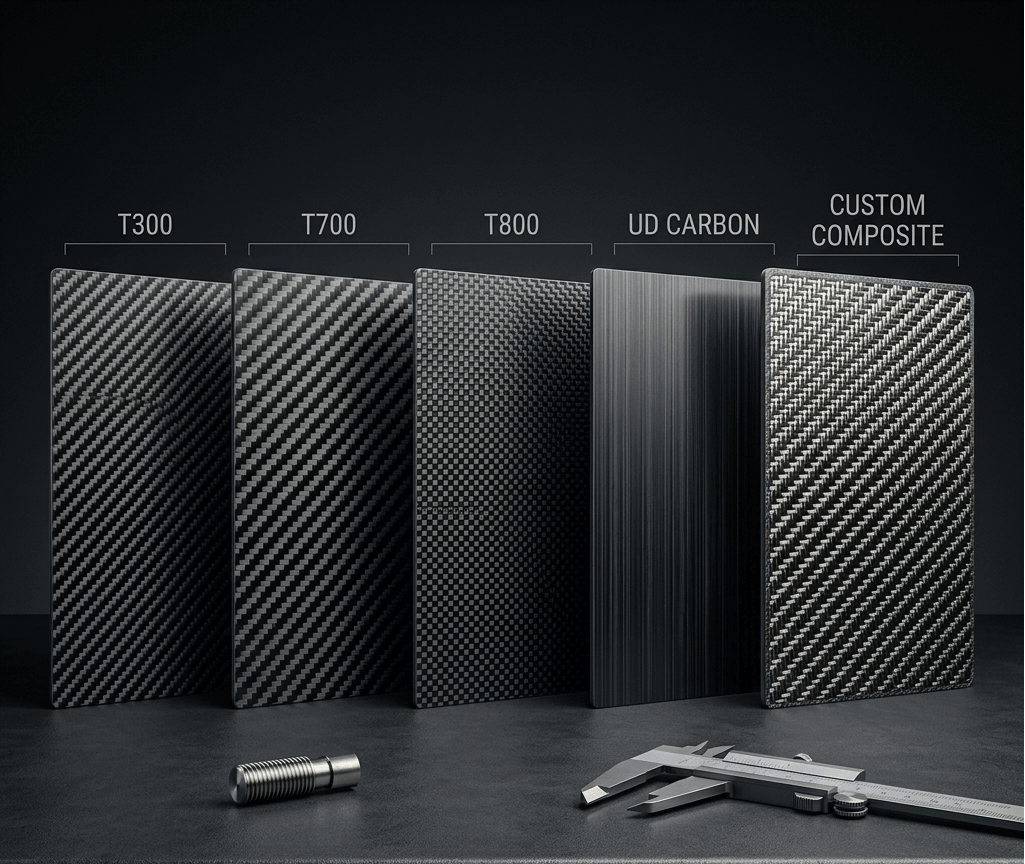

Carbon Fiber Sheet Materials, Weave and Layup Options
Available constructions include 3K twill weave, 3K plain weave, unidirectional reinforcement and quasi-isotropic multi-angle layups. Fiber type and orientation control axial stiffness, bending response and in-plane stability.
Epoxy resin systems, surface layers and curing conditions influence temperature capability, moisture resistance and surface quality. Glossy, matte, textured and machined finishes can be supplied for functional or cosmetic applications.

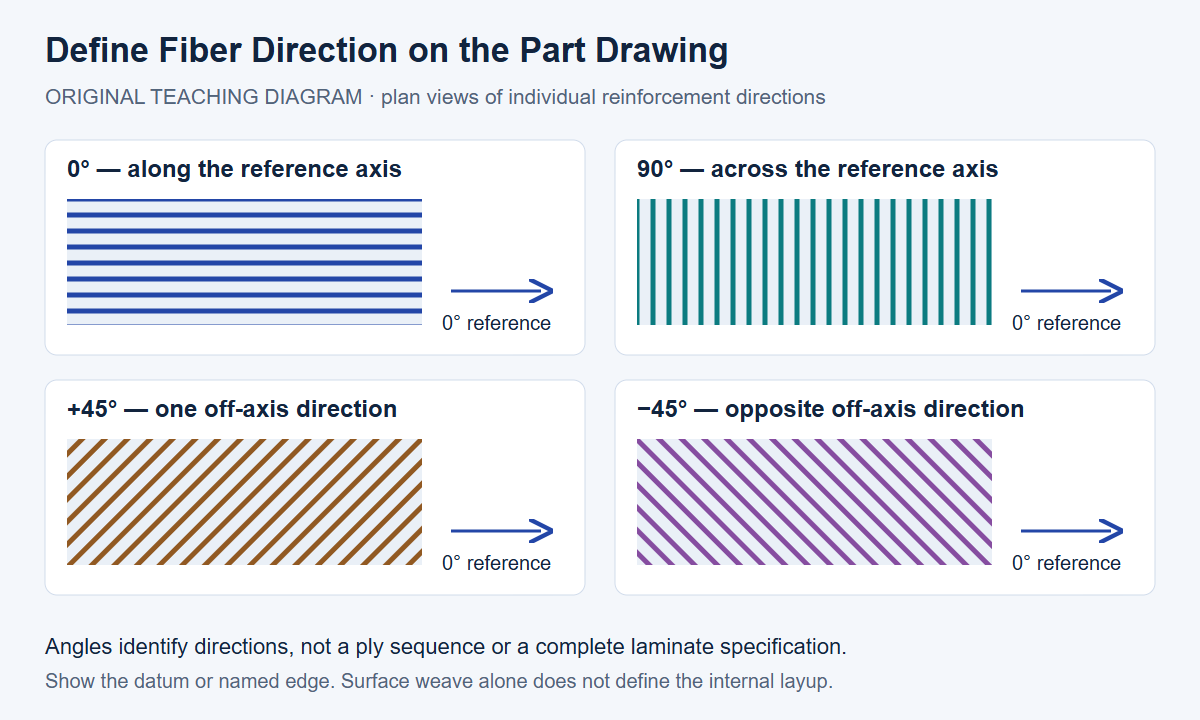

Put Fiber Direction and Inspection on the Drawing
Reference fiber angles to a named edge or datum on the part, not just to the visible twill pattern. A laminate specification also needs the reinforcement, ply sequence and material definition; the four directions below are not a manufacturing recipe.
Reading the directions: 0° follows the reference axis; 90° runs across it; +45° and −45° identify opposite off-axis directions. Surface appearance does not disclose the complete internal layup. A multi-directional laminate must be defined and reviewed as a whole rather than selected from a weave name alone.
| Check | Define the requirement and its evidence |
|---|---|
| Size | Name length, width and thickness measurement locations. State whether a thickness requirement includes any coating or backing. Identify critical flatness requirements and support conditions. |
| Layup | Show the 0° reference edge or datum. Provide the approved laminate schedule, or identify the loads and directional stiffness needs still requiring review. |
| Machining | Locate holes, slots and countersinks from functional datums. Include the mating hardware, critical fits and the required edge condition. |
| Finish | Mark cosmetic faces and bonding areas separately. Define the surface reference, any coating or backing and the acceptance requirements. |
| Inspection | Agree which dimensions are recorded, the method and sampling, and the drawing revision used for acceptance. Numerical limits require project review. |
Custom Carbon Fiber Sheet Manufacturing Capabilities
Material Selection
Fiber grade, resin and performance targets
Layup Design
Weave, orientation and stacking sequence
Compression Molding
Controlled pressure for laminate consolidation
Controlled Curing
Temperature and cure-cycle management
Thickness Control
Consistent laminate thickness
Large Sheet Production
Custom dimensions and large formats
CNC Profile Cutting
Accurate contours and shapes
Drilling & Milling
Holes, pockets and slots
Countersinking
Prepared fastener locations
Edge Finishing
Deburring, chamfering and sealing
Surface Treatment
Matte, glossy or coated finishes
Inspection & Documentation
Traceability and dimensional records
Carbon Fiber Sheet Manufacturing Process
1
Requirements Review
Review application, dimensions and performance targets.
2
Material Selection
Select fiber, resin, weave and laminate design.
3
Layup Preparation
Prepare layers according to orientation and stacking sequence.
4
Compression & Curing
Apply controlled heat and pressure for consolidation.
5
CNC Machining
Cut profiles, drill holes and machine features.
6
Quality Inspection
Inspect dimensions, surface and documentation.
Custom Carbon Fiber Sheet and Plate Solutions
We manufacture custom carbon fiber sheets and plates for both lightweight panels and thicker structural components. Projects can be supplied as full sheets or CNC-machined, assembly-ready parts.
- Custom thickness, dimensions and fiber orientation
- 3K twill, plain, UD and quasi-isotropic layups
- Glossy, matte and project-specific surfaces
- Drawing-based tolerances and CNC machining
- Holes, slots, countersinks and finished edges
- Prototype through repeat OEM production
Carbon Fiber Sheet Specifications
- Material: Carbon fiber reinforcement with an epoxy resin system
- Reinforcement and layup: Woven, UD or multi-directional construction, defined for the project
- Thickness: Specified for the application and reviewed with laminate and machining requirements
- Dimensions: Drawing-based length, width and usable area
- Surface: Glossy, matte or ground finish, with the required faces identified
- Processing: Cutting, drilling and milling to the agreed drawing
- Acceptance: Critical dimensions, datum references and inspection requirements agreed before production
Carbon Fiber Sheet Applications
- Aerospace panels and brackets
- Automotive lightweight components
- Drones, robotics and automation
- Electronics enclosures and heat spreaders
- Sports equipment and marine structures
- Custom industrial machinery
Quality Control & Testing
- Dimensional and flatness inspection
- Visual and surface-quality inspection
- Fiber orientation verification
- Mechanical testing when required
- Material certification and traceability
- Final inspection reports
Carbon Fiber Sheets vs Carbon Fiber Plates
Carbon fiber sheets and plates use similar composite materials but differ in thickness, stiffness, machining capability and typical application. Thin sheets suit covers and lightweight panels, while thicker plates support structural fixtures and heavily machined components.
| Feature | Carbon Fiber Sheets | Carbon Fiber Plates |
|---|---|---|
| Thickness | Thin to medium | Medium to thick |
| Weight | Very lightweight | Heavier but highly rigid |
| Machining | Profiles, holes and simple features | Deep pockets and complex machining |
| Best Use | Panels, covers and drone parts | Fixtures, machinery and structural parts |
How to Select the Right Carbon Fiber Sheet
For the effects of span, support and mounting on thickness selection, read How to Choose Carbon Fiber Sheet Thickness for Your Part.
Select the sheet according to load direction, bending span, stiffness target and acceptable weight. Thickness and fiber orientation have a major influence on structural performance.
Hole patterns, edge distance, fasteners and inserts should be reviewed to reduce local stress and delamination. Surface finish, temperature, moisture, chemicals, UV exposure, tolerance and production quantity should also be included in the specification.
Carbon Fiber Sheets vs Aluminum Sheets
Carbon fiber sheets provide a higher stiffness-to-weight ratio, lower density and better corrosion resistance than aluminum. Aluminum remains useful where isotropic strength, electrical conductivity, impact behavior or lower material cost is more important.
| Property | Carbon Fiber Sheets | Aluminum Sheets |
|---|---|---|
| Strength-to-Weight | Excellent | Moderate |
| Corrosion Resistance | Excellent | Good with treatment |
| Thermal Expansion | Low | Higher |
| Conductivity | Application-dependent | High |
| Best Use | Weight-critical structures | General metal fabrication |
