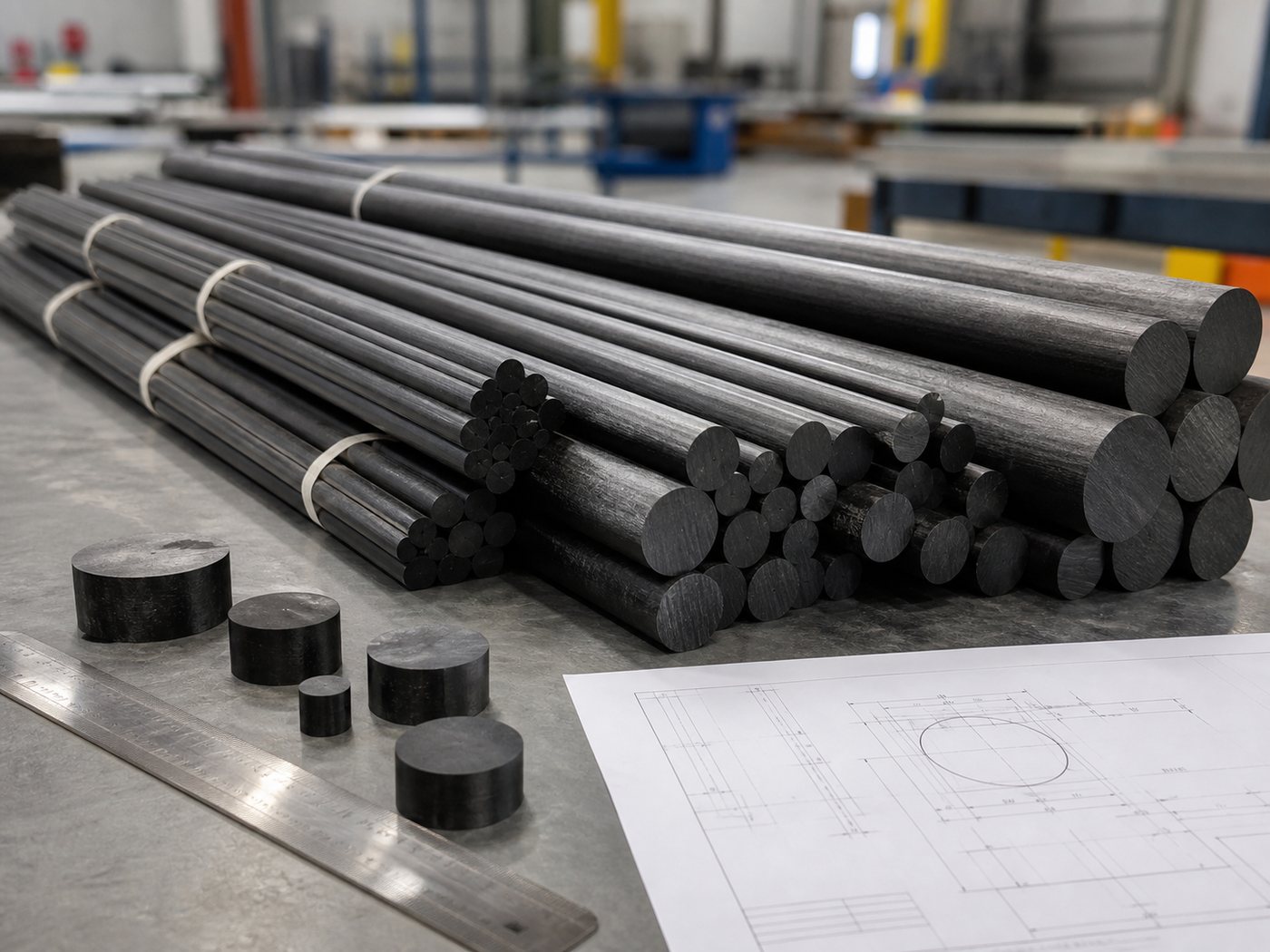

Custom Pultruded Carbon Fiber Rods
Made-to-specification pultruded carbon fiber rods for industrial OEM projects. Configure the rod diameter, cut length, carbon fiber grade, resin system, straightness, surface finish and secondary processing around your drawing and application.
Custom Diameter · Cut to Length · T300 / T700 Fiber · Prototype & OEM Supply
| Construction | Solid 0° Pultruded CFRP Rod |
| Carbon Fiber | T300 / T700 / Project-Specific |
| Diameter | Standard Tooling or Custom Diameter |
| Length | Continuous or Cut to Length |
| Processing | Cutting / Grinding / Drilling / Inserts |
Drawing-based review · Sample validation · Repeat production support
Made to Specification
Diameter, length, tolerance and surface defined by the project
0° Fiber Alignment
Continuous fibers oriented along the rod axis
Secondary Processing
Cutting, grinding, drilling, flats and bonded inserts
B2B Supply
Prototype quantities through repeat OEM production
Solid Pultruded CFRP Rods with Longitudinal Fiber Alignment
A pultruded carbon fiber rod is a solid composite profile produced by pulling continuous carbon fibers through resin and a heated forming die. The fibers remain primarily aligned in the 0° longitudinal direction, providing high axial stiffness and tensile performance at low weight.
This directional construction is well suited to struts, spars, push rods, positioning members and bonded reinforcement. Transverse loads, drilled connections and concentrated bearing loads require separate engineering review because a pultruded rod is strongly anisotropic.
Pultruded Carbon Fiber Rod Specifications
Final material, dimensions, tolerances and performance values are confirmed against the project drawing and approved production specification.
| Specification | Custom Options | Information Needed |
|---|---|---|
| Diameter | Standard tooling or custom diameter | Nominal diameter and tolerance |
| Length | Continuous production or precision cut length | Finished length and tolerance |
| Fiber Grade | T300, T700 or project-specific grade | Strength, stiffness or deflection target |
| Resin System | Epoxy or application-specific thermoset | Temperature, chemicals, moisture and UV exposure |
| Straightness | Commercial or controlled project requirement | Inspection span and acceptance criterion |
| Surface | As-pultruded, ground, coated or bonding-ready | Appearance, fit and joining method |
| End Processing | Cut, ground, drilled, flat, abraded or insert bonded | STEP, DXF or dimensioned PDF |
| Supply Mode | Sample, small batch or repeat OEM supply | Prototype and annual quantity |
Information Required for a Quote
- Diameter and tolerance
- Cut length and straightness
- Fiber grade or stiffness target
- Service temperature and environment
- End-processing drawing
- Prototype and annual quantity

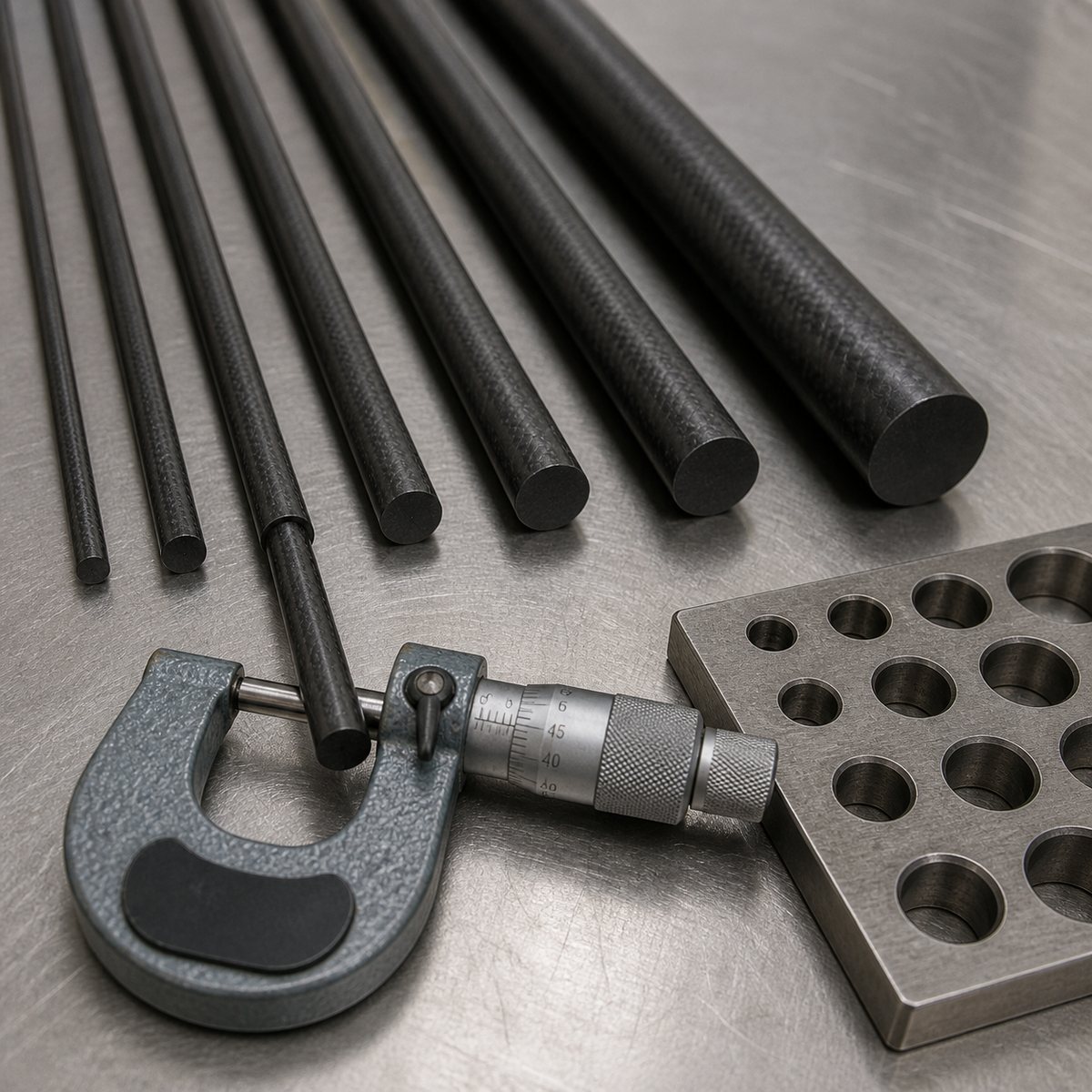

Custom Diameter and Cut-to-Length Carbon Fiber Rods
Choose a custom pultruded carbon fiber rod when standard retail sizes do not match the assembly. Tooling, diameter tolerance, straightness, shipping length and end processing are reviewed together.
Custom Diameter
Small and large diameters reviewed against tooling, fiber packing and tolerance.
Custom Length
Continuous lengths or precision cut-to-length rods for the final assembly.
T300 / T700 Fiber
Fiber grade selected around stiffness, strength, cost and supply requirements.
Custom Resin
Resin system reviewed for temperature, chemicals, water and outdoor exposure.
Common inquiry sizes: 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm and 12 mm solid CFRP rods. Availability and tolerances depend on tooling and volume.

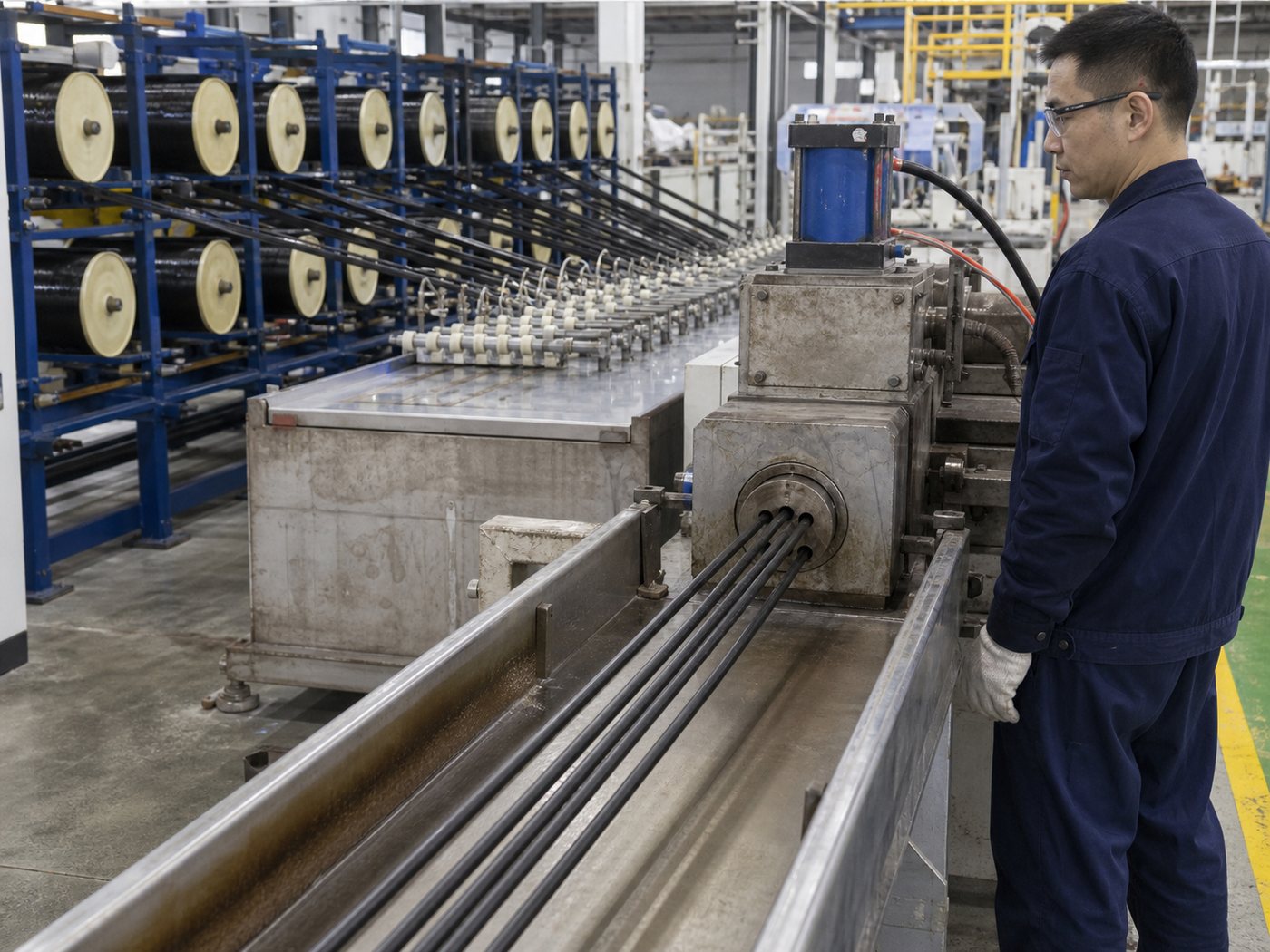

Pultruded Carbon Fiber Rod Manufacturing
Continuous pultrusion creates a constant solid cross section with fibers concentrated along the rod axis. Process control covers fiber alignment, resin impregnation, die temperature, pulling speed, cure and finished diameter.
01 · Application Review
Confirm the load direction, supports, joining details and environment.
02 · Material Selection
Select carbon fiber grade, resin and fiber-volume target.
03 · Tooling Review
Confirm standard or custom diameter tooling and tolerance capability.
04 · Continuous Pultrusion
Pull aligned fibers through resin and a controlled heated die.
05 · Secondary Processing
Cut, grind, drill, abrade or bond inserts to the approved drawing.
06 · Final Inspection
Check diameter, length, straightness, surface and processed ends.

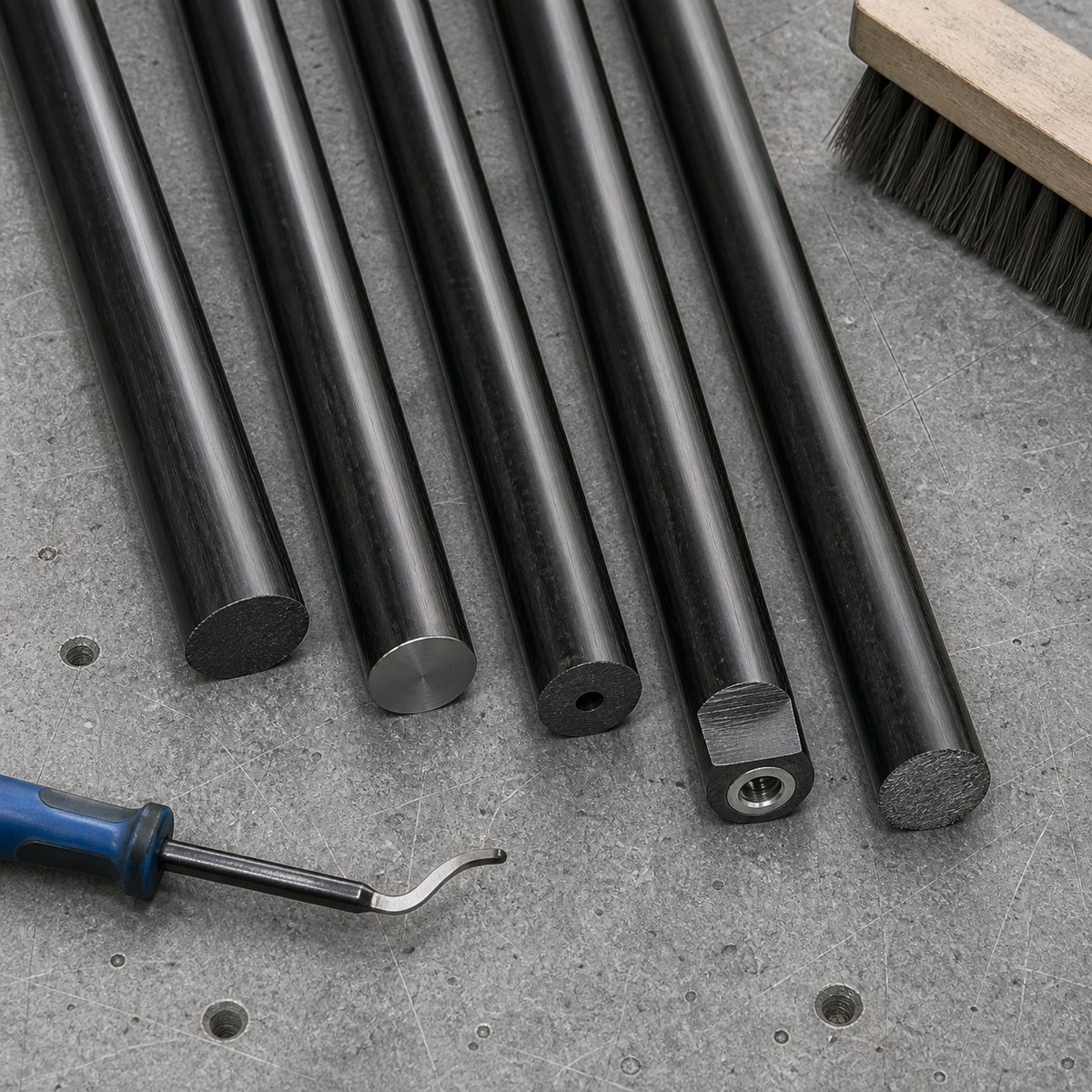

Cutting, Drilling and End Processing for CFRP Rods
Pultruded rods can be supplied as continuous stock, cut blanks or finished components. The process is selected to control splintering, heat and fiber breakout.

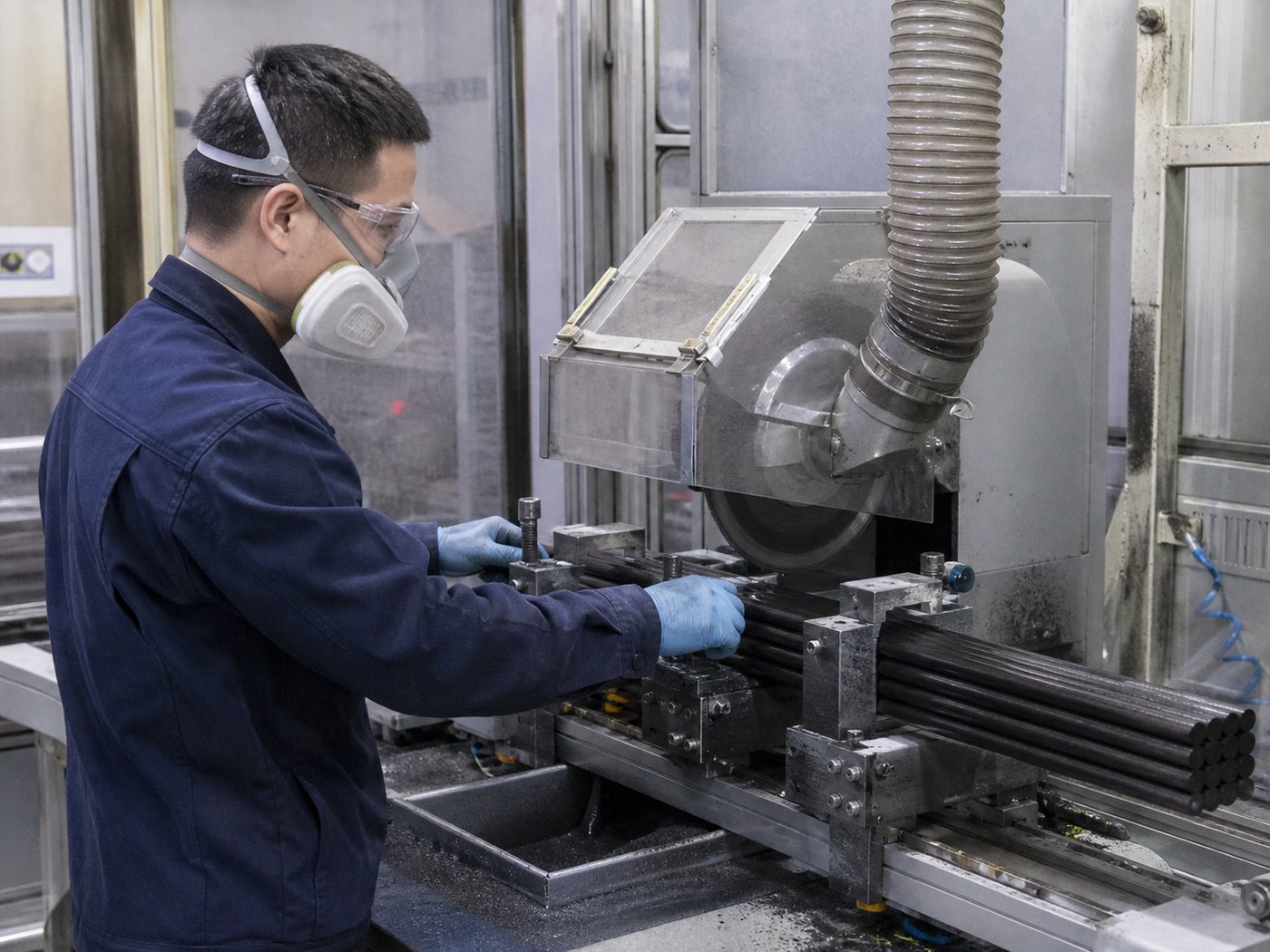

Precision Cutting
Custom cut lengths with controlled end-face quality.
Ground Ends & Flats
Diameter calibration, adhesive lands or anti-rotation flats.
Drilling & Inserts
Reviewed holes and bonded metal interfaces for load transfer.
Bonding Preparation
Cleaned or abraded surfaces for the specified adhesive process.
Engineering Properties of Pultruded Carbon Rods
Published values must be tied to the actual carbon fiber, resin, fiber volume and test method. The following characteristics describe the design intent rather than guaranteed universal values.
High Axial Stiffness
0° fibers provide efficient stiffness along the rod length.
High Tensile Efficiency
Continuous longitudinal fibers support axial tensile loading.
Low Structural Weight
High specific stiffness supports lightweight machine design.
Corrosion Resistance
CFRP avoids metal corrosion, subject to resin and environment review.
Low Thermal Expansion
Useful for stable structures when temperature behavior is verified.
Directional Behavior
Transverse and bearing loads require deliberate joint design.
Pultruded Carbon Fiber Rods for OEM Applications
Use solid pultruded CFRP rods where the principal load follows the rod axis and low mass, corrosion resistance or dimensional stability supports the design.

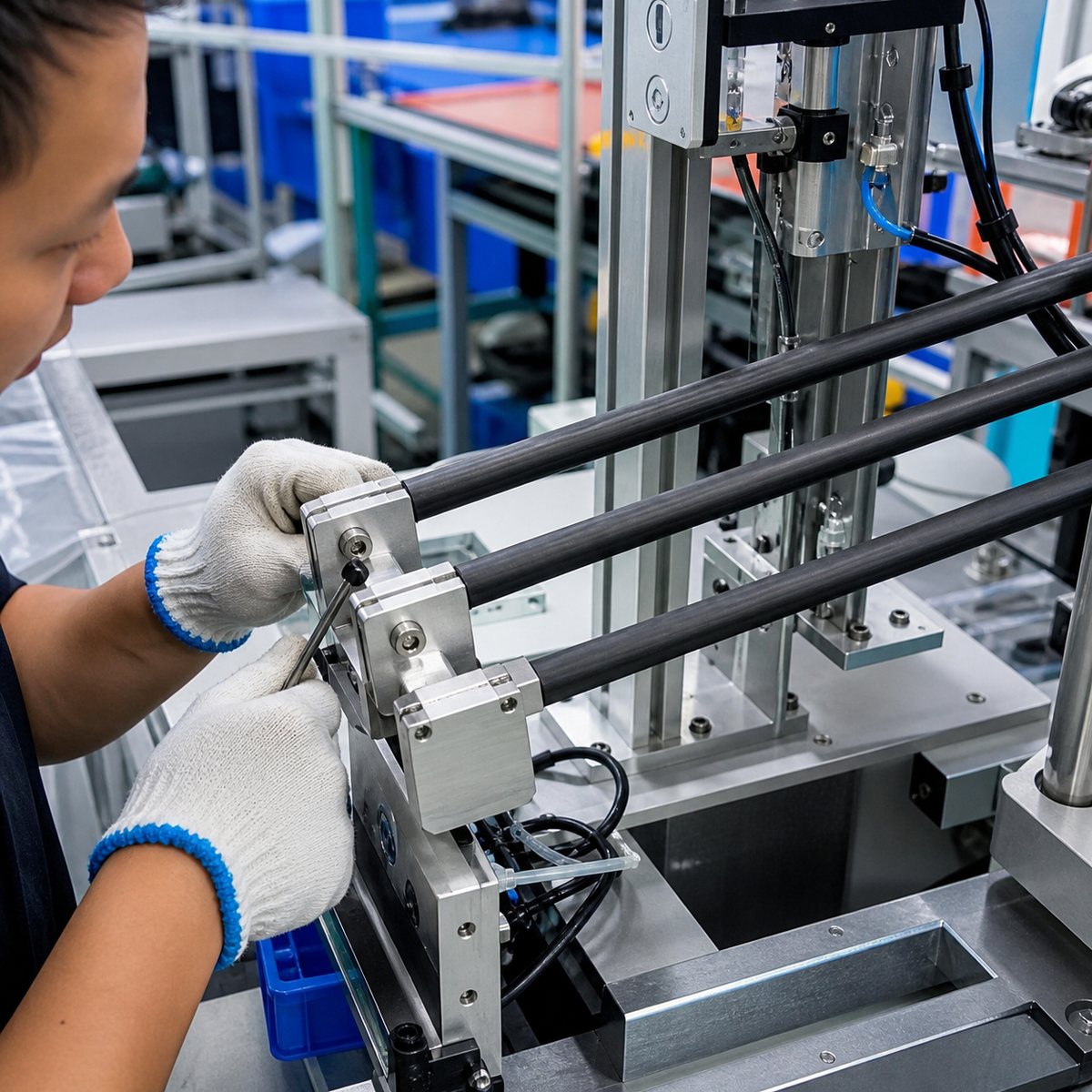

Robotics & Automation
Push rods, braces and lightweight positioning members.
UAV & RC Structures
Spars, longerons and directional reinforcement.
Measuring Equipment
Low-mass supports and dimensionally stable members.
Industrial Assemblies
Bonded struts, guides, handles and structural inserts.
Sporting Equipment
Application-specific stiffeners and flex members.
Structural Reinforcement
Bonded rods for timber, concrete or composite systems after engineering review.
Pultruded Carbon Fiber Rod vs. Roll-Wrapped Tube
Select by load path and interface rather than appearance. A solid pultruded rod and a roll-wrapped tube are not interchangeable.
| Selection Factor | Pultruded Solid Rod | Roll-Wrapped Tube |
|---|---|---|
| Cross Section | Solid constant profile | Hollow tube with wall thickness |
| Primary Fibers | Mostly longitudinal 0° | Longitudinal plus hoop/angle plies |
| Best Fit | Axial tension, small diameters, bonded reinforcement | Bending, torsion and lightweight larger sections |
| Diameter Range | Efficient for small to medium solid profiles | Efficient when a hollow section saves mass |
| Customization | Diameter, length, resin and end processing | OD, ID, wall, layup and finish |

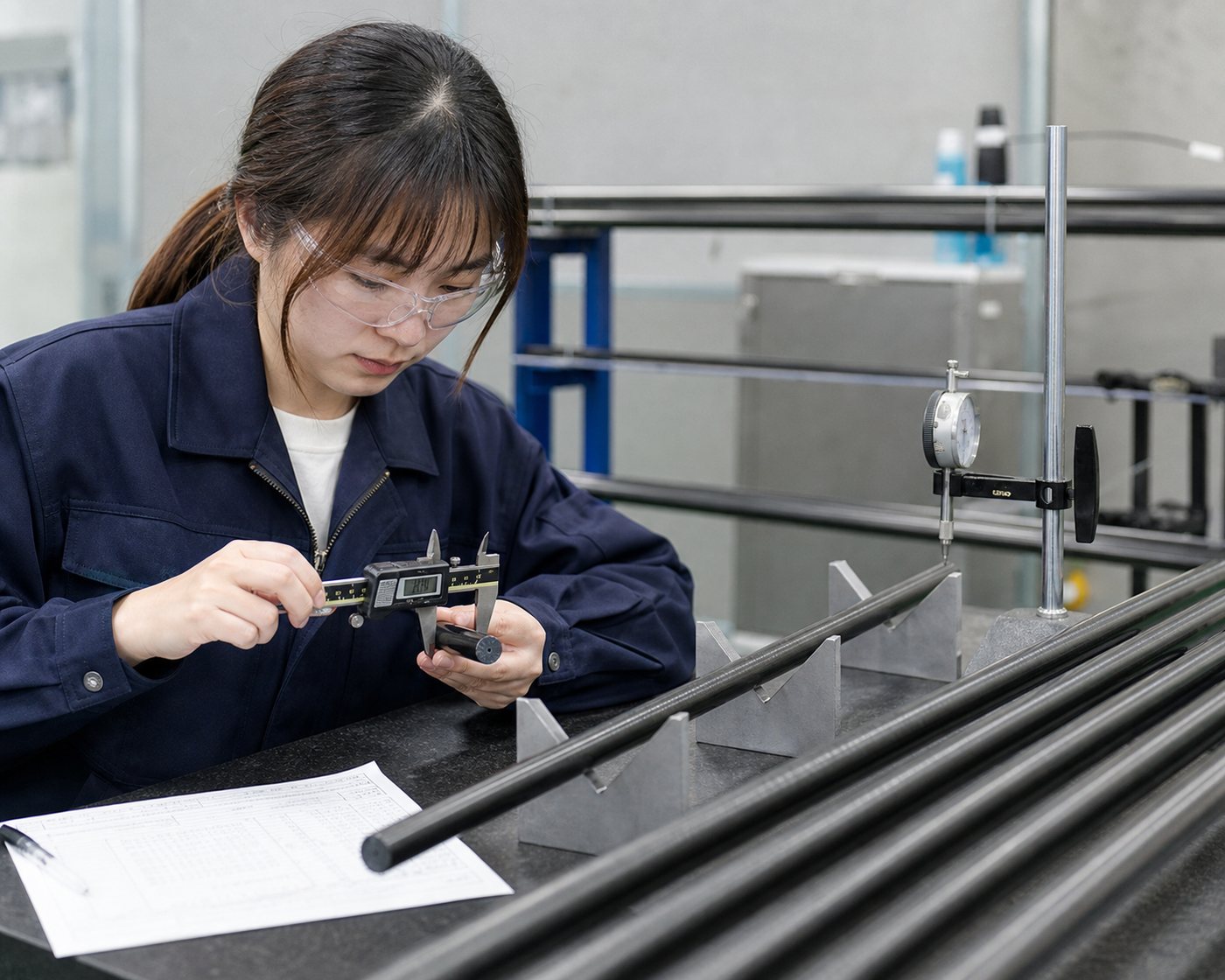

Inspection for Custom Pultruded Carbon Fiber Rods
Diameter & Length
Verify the agreed diameter, tolerance and cut length.
Straightness
Inspect over the specified support span and acceptance criterion.
Surface & Ends
Check cracks, exposed fibers, contamination and processed features.
Batch Records
Maintain production and inspection records when required by the project.
Pultruded Carbon Fiber Rod FAQ
Engineering, customization and purchasing questions for solid carbon fiber pultruded rods.
It is a solid CFRP profile made by continuously pulling aligned carbon fibers through resin and a heated die to form a constant cross section.
This page covers solid pultruded rods. Hollow carbon fiber tubes use different tooling and may use pultrusion or roll wrapping depending on the required laminate.
Yes. Standard tooling is reviewed first; a custom die may be evaluated when the diameter, tolerance and projected volume justify it.
Yes. Rods can be supplied in production lengths or precision cut according to the drawing, packaging and shipping requirements.
T300, T700 and project-specific grades can be reviewed. Selection depends on stiffness, strength, cost, process compatibility and availability.
Selected holes and flats may be processed, but the design must consider transverse strength, fiber breakout, edge distance and load transfer.
Bonded end fittings can be evaluated using an appropriate prepared surface, adhesive, overlap length and load-transfer design.
They provide strong longitudinal stiffness, but joint details and transverse stresses must be reviewed. Tubes or multi-directional laminates may be preferable for some bending and torsional cases.
Epoxy and application-specific thermoset systems can be reviewed against temperature, chemicals, moisture, UV exposure and production requirements.
Options may include as-pultruded, ground, coated or bonding-ready surfaces depending on diameter, fit, appearance and joining requirements.
Prototype and small-batch supply can be reviewed based on existing tooling, material, length, machining and inspection requirements.
Provide the diameter, tolerance, length, straightness, application, load direction, fiber or performance target, environment, end-processing drawing, quantity and destination.
Related Carbon Fiber Products and Services
Carbon Fiber Tubes
Compare hollow sections for bending, torsion and larger outside diameters.
Unidirectional Carbon Sheets
Review 0° sheet reinforcement for beams, panels and bonded structures.
Custom CFRP Processing
Discuss cutting, drilling, bonding preparation and drawing tolerances.
Request a Custom Pultruded Carbon Fiber Rod Quote
Send the diameter, tolerance, length, application, fiber or stiffness requirement, end-processing drawing and annual quantity for a feasibility review.
