Custom Forged Carbon Fiber Sheets

Carbosources supplies custom forged carbon fiber sheets and plates for OEM panels, visible components and drawing-based CNC parts. Sheet size, thickness, finish, visible sides and secondary machining are reviewed against the application rather than assumed from the forged pattern alone.

Send the required dimensions, quantity, surface expectation and part drawing so the forged carbon fiber sheet can be evaluated as flat stock or as a finished machined component.

Specification	Project input
Format	Flat forged carbon sheet, plate or finished CNC-machined part
Dimensions	Finished length, width and thickness with units
Visible sides	One-side or two-side appearance requirements
Finish	Matte, gloss or project-specific finish, subject to material review
Machining	Cut profile, holes, slots, chamfers and edge finish from drawing
Inspection	Critical dimensions, thickness, flatness and visible-surface criteria

State whether the sheet is purchased as material stock or must arrive as an installation-ready component. The same nominal sheet can require different protection, machining and inspection depending on its visible surfaces and assembly interfaces.

Available purchasing formats: buyers can request full sheet stock for their own workshop, near-net cut blanks that reduce material handling, or finished parts supplied to an approved drawing. When a buyer requests a forged carbon sheet, the quotation should identify which format is required, because machining allowance, edge protection, packaging and inspection differ between raw stock and completed components.

Specify Thickness, Size and Visible Sides

Specify finished length, width and thickness instead of relying on a general forged-carbon description. Identify which dimensions are critical to fit and whether material around the perimeter will be removed during CNC machining. For machined parts, show the final outline and datum scheme on the drawing.

State whether one or both faces remain visible. Matte, gloss, polishing, protective film and edge appearance should be reviewed together. If thickness is still being selected, use the carbon fiber sheet thickness guide as a starting point and confirm the actual material against the load and machining plan.

Forged Carbon Fiber Sheet vs. Woven Laminate

A forged carbon fiber sheet uses a random chopped-fiber appearance rather than the repeating twill or plain weave seen on woven laminates. The visual pattern can vary across a panel and between production pieces; define the acceptable appearance with samples or agreed inspection criteria when consistency matters.

The material is commonly produced by consolidating chopped carbon reinforcement with a compatible resin system under controlled pressure and heat. Fiber distribution, resin content, molding conditions and post-processing influence appearance and performance. The term forged carbon fibre sheet is the British-English spelling of the same product category; it does not describe a separate material grade. For engineering use, request the construction and available technical data instead of selecting the sheet only from its surface pattern.

Material performance depends on fiber format, resin system, consolidation, thickness and test direction. A forged pattern alone does not establish structural properties. For directionally loaded parts, compare the actual data with woven or unidirectional laminates instead of treating every carbon sheet as interchangeable. See the weave and unidirectional comparison for the role of reinforcement architecture.

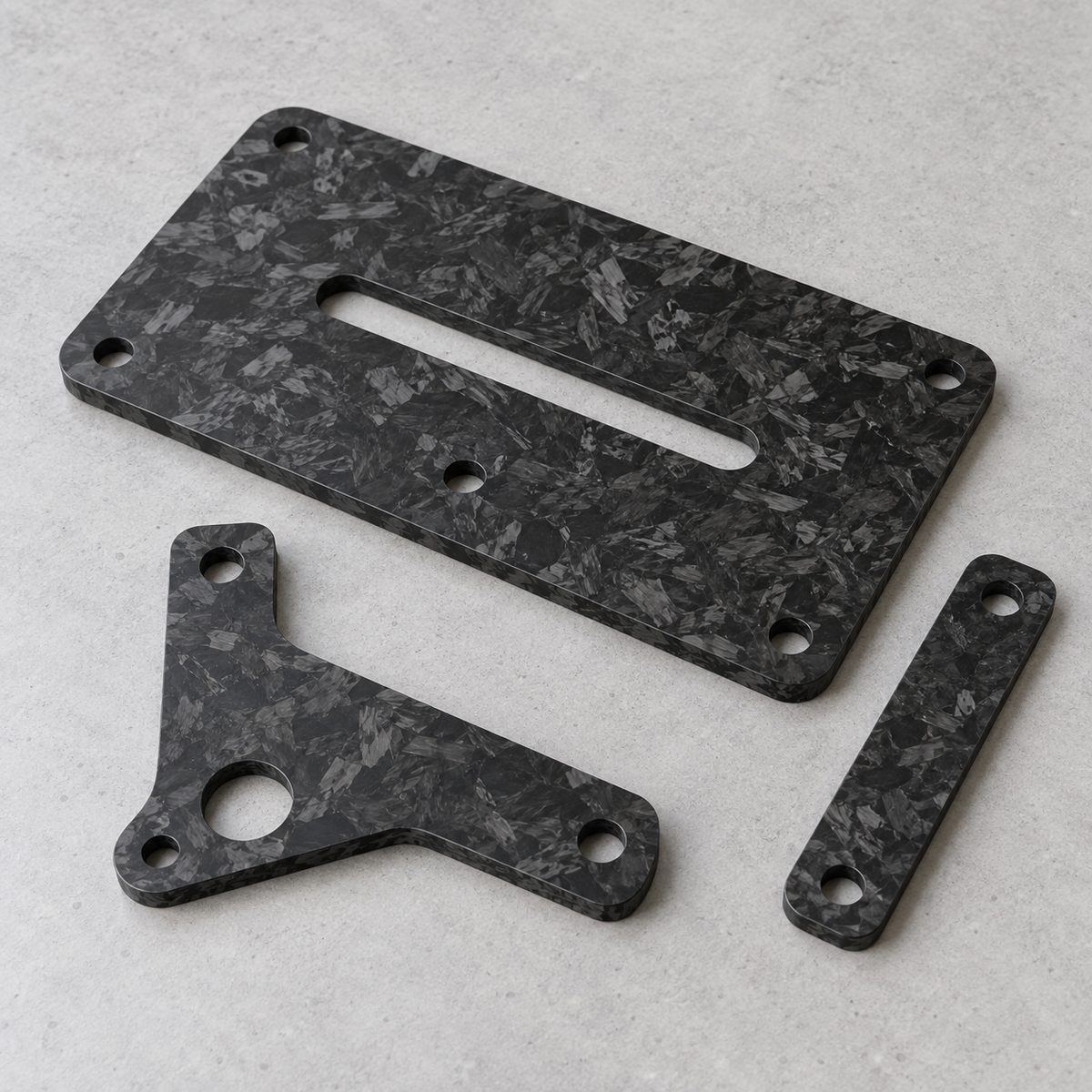

CNC Machining for Forged Carbon Fiber Plates

A forged carbon fiber plate can be supplied for downstream machining or processed to a finished profile from the customer drawing. Show all holes, slots, countersinks, chamfers and visible edges. Locate critical features from named datums and include the mating part when hole position or edge clearance controls assembly.

Machining decisions should account for sheet thickness, part support, tool access and the distance between features and edges. Surface protection and dust control also matter when the random forged face is cosmetic. Review the carbon fiber CNC machining service for additional drawing inputs.

Typical applications include automotive interior trim, drone and robotics components, equipment covers, consumer-product panels, sports accessories, brackets and decorative structural parts. Suitability depends on the load case, environment, attachment method and cosmetic requirements. For assemblies, provide mating geometry and note any inserts, bonded areas or fastener interfaces that must be considered during machining.

What We Need to Review a Custom Forged Carbon Fiber Sheet

Sheet requirement: length, width, thickness, quantity and units.
Material use: structural member, visible panel, trim, enclosure or machined component.
Appearance: visible sides, finish, pattern expectations and acceptable variation.
Drawing: DXF, STEP, IGES or dimensioned PDF for cut profiles and machined features.
Acceptance: critical dimensions, surface criteria, edge finish and required documentation.

For repeat programs, include prototype quantity and expected production volume so sampling, tooling, machining and inspection can be reviewed together. MOQ and lead time are confirmed only after the material construction, dimensions and processing requirements are understood.

Inspection for Forged Carbon Sheets and Machined Parts

Inspection should cover the features that affect assembly and appearance: finished thickness, length and width, flatness where required, hole and slot locations, edge condition and visible surfaces. Critical tolerances should be identified on the drawing rather than applied uniformly to every dimension.

Because the chopped-fiber pattern is non-repeating, cosmetic acceptance should use representative samples or written criteria rather than expecting identical markings on every sheet. Production records should retain the drawing revision and approved finish reference for repeat orders.

Send Your Sheet or Machined-Part Drawing

Send the required sheet dimensions, thickness, quantity, finish, visible sides and machining drawing. Carbosources will review the forged carbon material, sheet format, CNC requirements and inspection points before quotation.

Frequently Asked Questions

Can forged carbon fiber sheets be CNC machined?
Yes. Profiles, holes, slots and edge details can be reviewed from a dimensioned drawing or 3D model.

Will every sheet have the same pattern?
No. The chopped-fiber distribution creates natural visual variation, so appearance criteria should be agreed when matching matters.

Can both faces be cosmetic?
Two visible faces can be reviewed, but the required finish and acceptance standard must be stated before quotation.

What is needed for a quotation?
Provide dimensions, thickness, quantity, visible sides, finish, application and any CNC drawing or tolerance requirements.
